Energy Floorstanding Speakers
e:XL-26

Energy Center Speaker
e:XL-C

Energy Bookshelf Speakers
e:XL-16

Energy Subwoofer
e:XL-S12

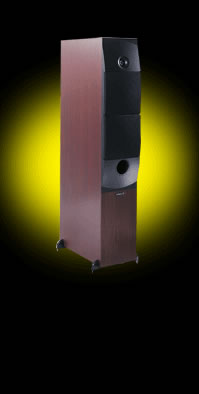

    Floorstanding Speakers:
  • With dual 6-1/2" woofers and a larger cabinet, the e:XL-26 holds up to 200 watts of power, in a sleek efficient enclosure design. The small cabinet width makes this speaker easy to fit into any room size and decor. Available in multiple finishes and fully bi wire or bi amp capable.

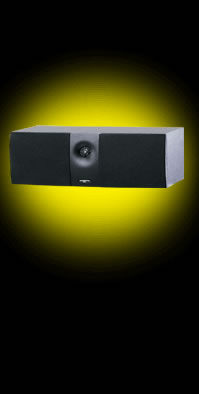

    Center Speaker:
  • The matching center channel speaker for any e:XL series home theater system. Its dual 4" woofer array and 3/4" aluminum dome tweeter ensure clear, articulate center channel dialog from a small sized cabinet. The low profile enclosure is easy to place above or below your TV. The e:XL-C is recommended with front speakers up to the e:XL-25 model

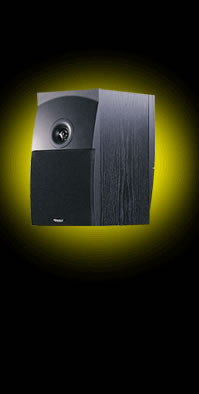

    Bookshelf Speakers:
  • The larger e:XL-16 provides even better bass response and power handling as upgrade features. The stereo image is excellent due to the carefully designed sculpted front baffle. The flexible rear-vented enclosure can be placed on a bookshelf or a stand, and can also be wall-mounted with the MacroMount bracket.

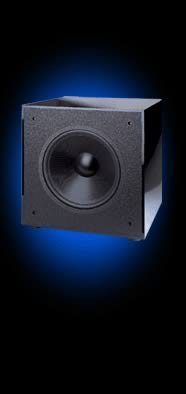

    Subwoofer:
  • This is the largest of the e:XL series - featuring a beautiful gloss black cabinet that matches perfectly with our Veritas and Audissey series, the AC-300 or any other high gloss product. The 12" transducer features a 62 oz. magnet structure, with a 2-inch voice coil. Using the same injection molded cone technology as its smaller siblings, the e:XL-S12 is fast, articulate and loud! Added features include high level inputs and outputs with a 80Hz high pass filter, as well as a two-position phase switch, useful in more complicated setups. The e:XL-S12 is designed for larger rooms where higher sound pressure output is required.

    Floorstanding Speakers:
  • Tweeter: 19mm Aluminum dome, textile suspension
  • Woofer: 16.5 cm x2 mica polypropylene cone, injection molded basket
  • Frequency Response: 37Hz - 20kHz
  • Crossover Frequency: 2.2 kHz
  • Sensitivity: 94dB
  • Impedance: 8 ohms (Nominal)
  • Recommended Amplifier Power: 15 - 200 watts
  • Available Finishes: Black Ash, Rosewood, Light Birch

    Center Speaker:
  • Tweeter: 19mm Aluminum dome, textile suspension
  • Woofer: 11.4 cm x2 mica polypropylene cone, rubber suspension
  • Frequency Response: 60Hz-20KHz
  • Crossover Frequency: 2.2 kHz
  • Sensitivity: 89dB
  • Impedance: 8-ohm compatible
  • Recommended Amplifier Power: 15 - 100 watts
  • Available Finishes: Matte Black

    Bookshelf Speakers:
  • Tweeter: 19mm Aluminum dome, textile suspension
  • Woofer: 16.5 cm mica polypropylene cone, injection molded basket
  • Frequency Response: 50Hz-20KHz
  • Crossover Frequency: 2.2 kHz
  • Sensitivity: 91dB
  • Impedance: 8-ohm compatible
  • Recommended Amplifier Power: 15 - 100 watts
  • Available Finishes: Black Ash, Rosewood, Light Birch

    Subwoofer:
  • Amplifier Type: MOSFET circuitry
  • Power Output: 150 watts, 600 watts peak
  • Woofer: 30.5cm heavy duty
  • Audio/Video EQ.: Yes
  • Variable Low Pass Filter: 50-100Hz
  • Frequency Response: 20Hz-100Hz +/- 3dB
  • Inputs: Low level RCA, High level speaker type
  • Outputs: High level
  • Variable Phase Control: 0 - 180 degrees
  • High Level High Pass Filter: 80Hz

  • Floorstanding Speakers: each, 35lbs 5oz (16kg)
  • Center Speaker: 14lbs 2oz (6.4kg)
  • Bookshelf Speakers: each, 11lbs (5kg)
  • Subwoofer: 45lbs 3oz (20.5kg)

  • Floorstanding Speakers: each, 35-3/4 x 6-3/4 x 14-9/16" (910 x 170 x 370mm)
  • Center Speaker: 5-1/2 x 16-7/8 x 9-1/8" (140 x 430 x 230mm)
  • Bookshelf Speakers: each, 12-1/4 x 6-3/4 x 10-9/16" (310 x 170 x 270mm)
  • Subwoofer: 16-7/8 x 16-7/8 x 17-3/4" (430 x 430 x 450mm)
